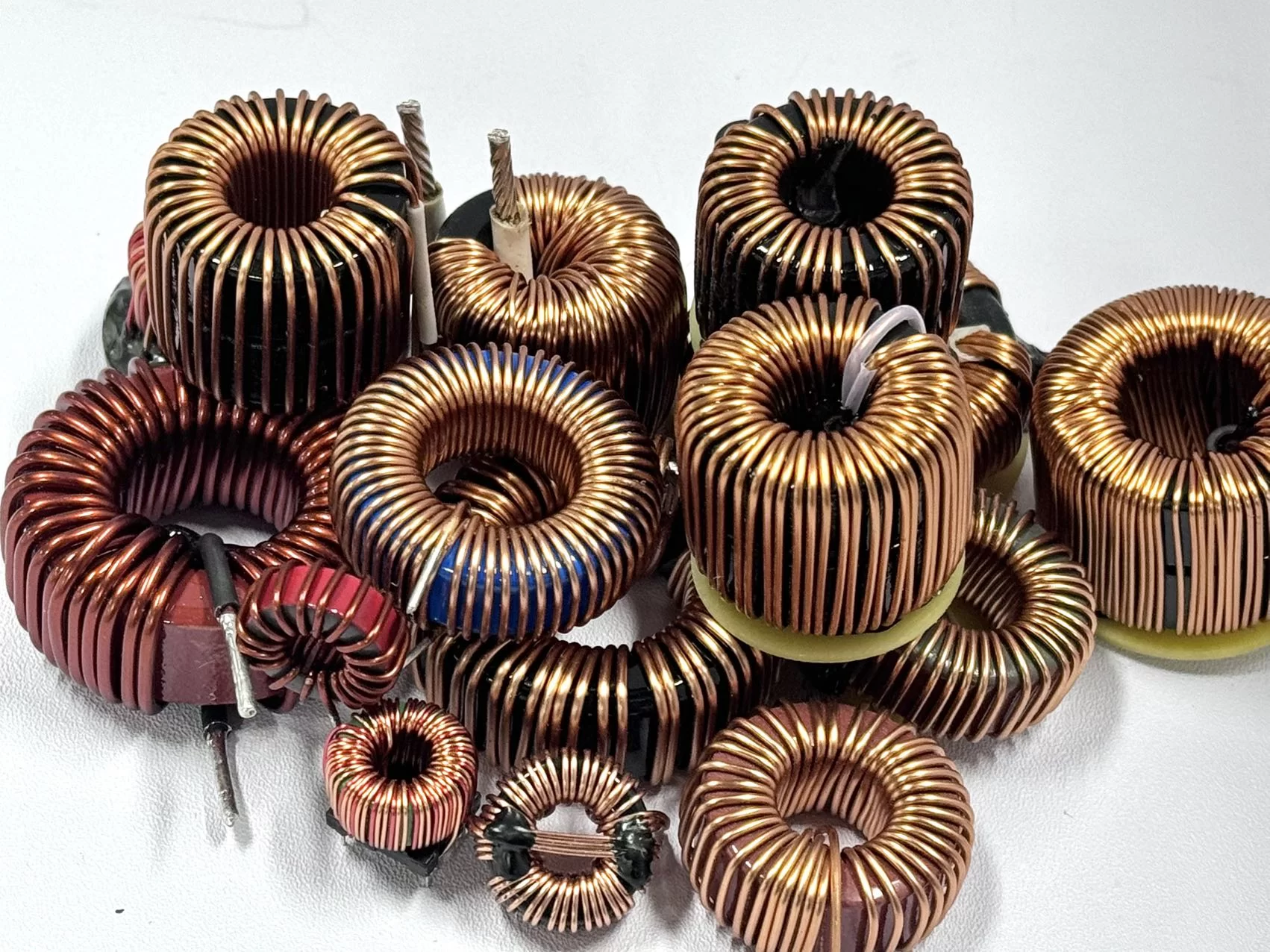

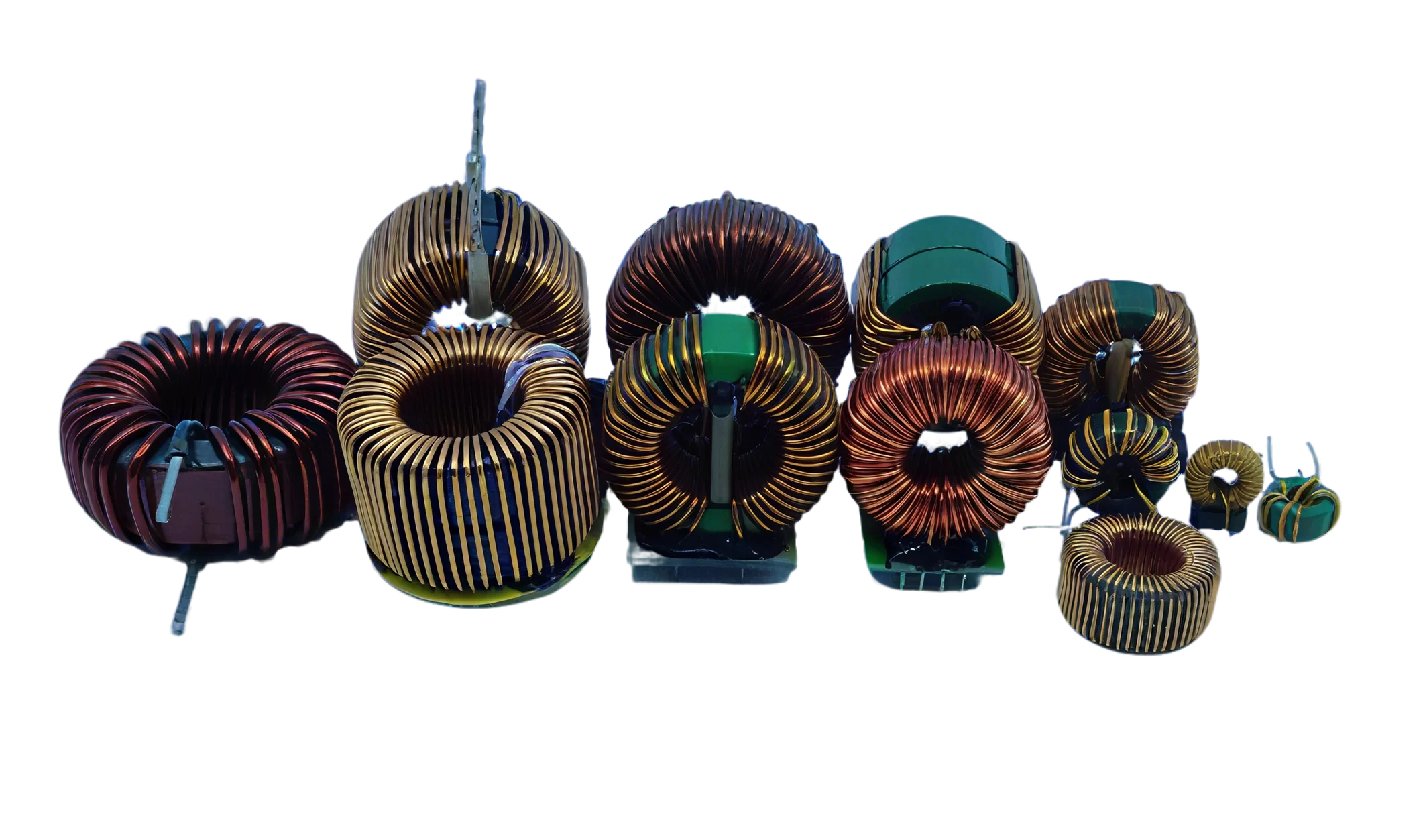

Common mode inductor

A common mode choke is a passive electromagnetic component designed to suppress unwanted electromagnetic interference (EMI) and radio frequency interference (RFI) in electrical circuits. It achieves this by blocking high-frequency noise signals while allowing desired low-frequency or DC currents to pass freely.

Structurally, a common mode choke consists of two or more windings wound on a magnetic core, typically made from ferrite or nanocrystalline material. These windings are connected in such a way that common mode currents (noise currents flowing in the same direction) are canceled out due to opposing magnetic fields, while differential currents (useful signals) remain unaffected.

Common mode chokes are widely used in switch-mode power supplies (SMPS), inverters, automotive systems, data lines, and communication equipment. Their primary role is to enhance system electromagnetic compatibility (EMC) and improve signal stability.

Key advantages include compact size, high impedance at noise frequencies, low power loss, and excellent thermal performance. With the growing demand for high-efficiency and low-noise electronic devices, common mode chokes have become essential components in modern circuit design.

SQ Inductor

SQ Inductor ensures stable signal flow and superior audio clarity in sound systems.

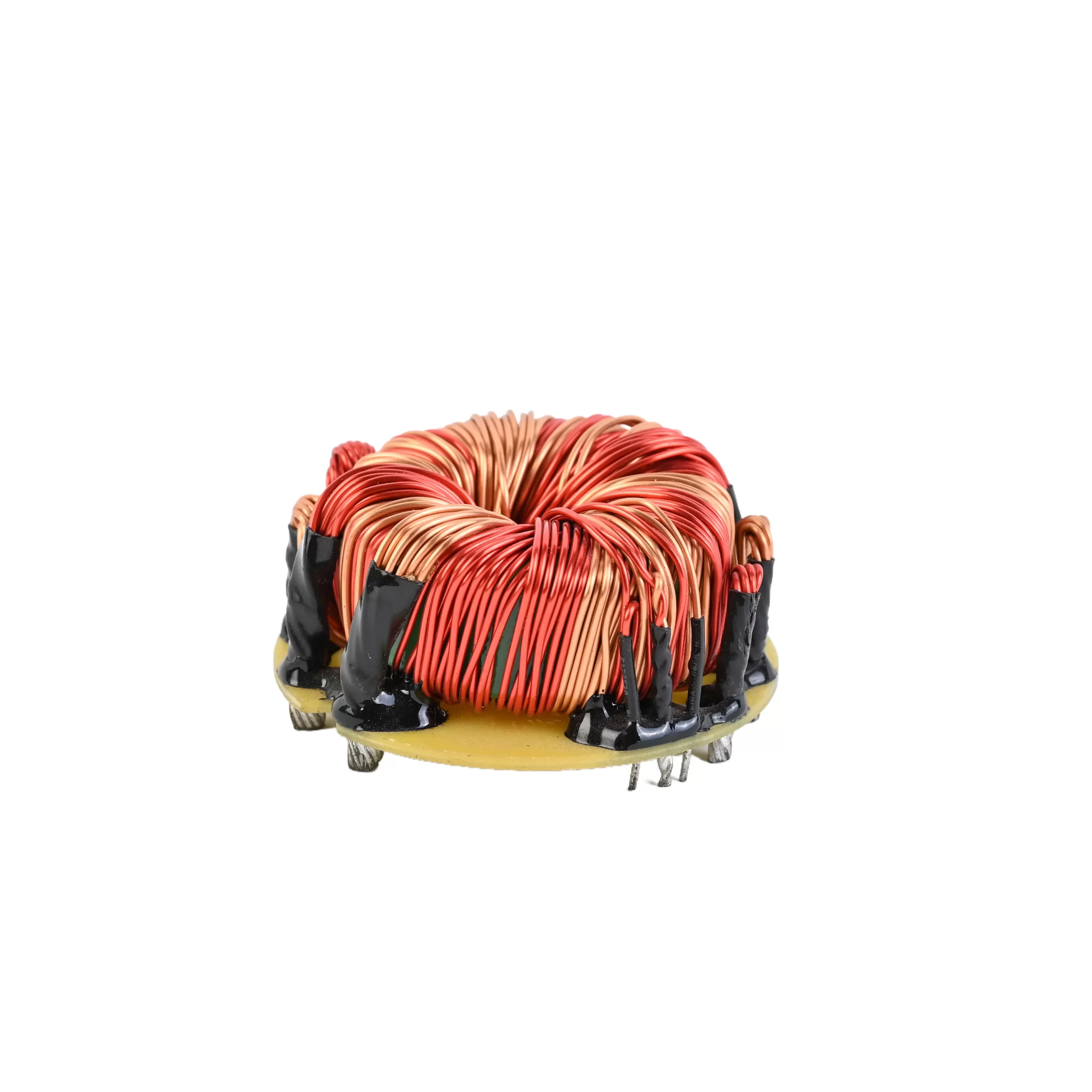

Common-Mode Choke

Common-Mode Choke suppresses noise and interference in power and signal lines for cleaner performance.
Three-Phase Common Mode Choke

Three-Phase Common Mode Choke suppresses electromagnetic interference and improves stability in three-phase power systems.

Power Common Mode Choke Applications and Benefits

A power common mode choke is specifically designed for use in power lines and high-current circuits, where strong electromagnetic noise suppression is required. Unlike signal-line chokes, these are built to handle large currents while maintaining high inductance and minimal temperature rise. The choke’s magnetic core—usually ferrite or nanocrystalline alloy—provides excellent permeability, allowing efficient attenuation of noise over a broad frequency range. This ensures the suppression of both conducted and radiated interference, helping electronic systems comply with strict EMC and EMI standards. Power common mode chokes are commonly found in power converters, motor drives, renewable energy systems, and industrial control equipment. They reduce conducted emissions from switching devices and stabilize the current flow, protecting sensitive circuits and extending equipment life. By filtering unwanted common mode noise, these chokes enhance the reliability, safety, and performance of power systems. Their robust construction and high saturation current capability make them ideal for use in harsh electrical environments, ensuring smooth and efficient operation.

Key Features of Common Mode Choke

High EMI Suppression Efficiency

Common mode chokes effectively eliminate high-frequency interference caused by switching devices and external noise sources, ensuring stable and clean current transmission.
Compact Design and High Reliability

Their compact, lightweight construction allows easy integration into PCB boards and power modules, while high-quality core materials ensure consistent performance under varying conditions.
Wide Frequency and Current Range

Available in various inductance and current ratings, common mode chokes support a wide range of applications—from low-power signal filtering to high-current industrial systems.

Power Common Mode Choke Design and Performance

The design of a power common mode choke focuses on achieving high impedance, low power loss, and excellent temperature stability in high-current environments. Engineers carefully select core materials, winding structures, and insulation systems to ensure optimal performance and reliability.

Core Material Optimization

Ferrite and nanocrystalline cores are used to provide high permeability and low core loss, improving noise suppression efficiency and reducing heat generation.

Winding Configuration

Symmetrical winding arrangements are designed to balance magnetic flux, minimize leakage inductance, and maintain low DC resistance for efficient current handling.

Thermal Management and Durability

Enhanced cooling structures and high-temperature insulation materials ensure reliable operation even under heavy load and fluctuating power conditions, extending the choke’s lifespan.
